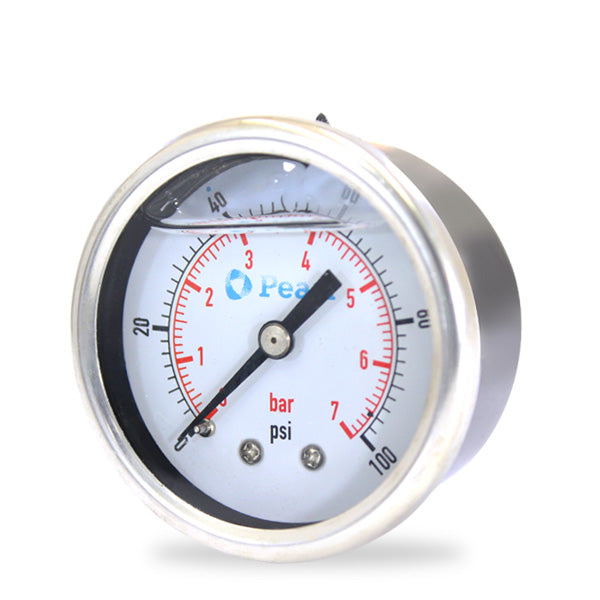

High quality pressure gauges built with the best materials and assembled following the most accurate procedures to guarantee the best measurement device.

The liquid filled pressure gauges series has made developed for high precision installations where the accuracy of the pressure reading is key factor for the person who operates the system.

The internal components made in bronze for better resistance and precision, are enclosed in a stainless steel casing and a stainless Steel ring seal the glycerin that gives the best precision to the pressure readings.


FEATURES:

• Metal casing
• Glycerin filled
• Available in 2¢â¬ and 2½¢â¬ dial
• Stainless steel ring
• ¼¢â¬ male brass back connection
• High resistance polycarbonate lens
• Available in pressure ranges 0-100 psi; 0-160 psi; 0-200 psi and 0-300 psi
• To be used with air or water

TECHNICAL INFORMATION

MODEL	CONNECTION	CASING	DIAMETER	PRESSURE RANGE	BOX QTY.	WEIGHT [LB]
PG100B20L4M	¼" BACKMOUNT	METAL	2"	0 - 100 PSI	50.0	0.34
PG160B25L4S	¼" BACKMOUNT	STAINLESS STEEL	2½"	0 - 160 PSI	50.0	0.44
PG200B25L4S	¼" BACKMOUNT	STAINLESS STEEL	2½"	0 - 200 PSI	50.0	0.44
PG300B25L4S	¼" BACKMOUNT	STAINLESS STEEL	2½"	0 - 300 PSI	50.0	0.44
