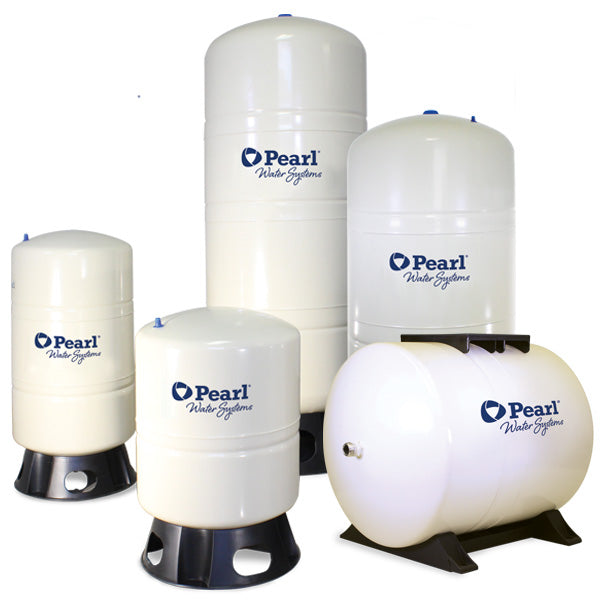

Pearl MNP Tank Series Inline Model from 0.35 to 10 Gal

Manufacturer’s Limited Warranty: 5 Years

The MNP Series has been designed for a wide range of applications, including hydropneumatic systems, booster systems, irrigation systems, and reduction of waterhammer effects.

The MNP Series tanks, made of steel, have an internallining of virgin polypropylene and a chlorobutyl membrane, certified by the FDA. The membrane is fixed to the tank wall thanks to a steel ring. A bronze valve sealed with a plug and an ring that prevents air from escaping.

The external coating of the MNP Series tanks, with almond colored polyurethane paint on an epoxy base, provides hundreds of hours of protection against UV rays and in ambient aggressive like saline.

FEATURES

• Fixed Butyl membrane
• Stainless steel water connection
• Internal lining in virgin polypropylene
• Finished with polyurethane paint on epoxy base
• Air valve plug sealed with O-ring anti leak
• Do not require maintenance.
• Maximum Working Pressure: 150 PSI / 10 bar.
• Maximum working temperature of water: 90 ° C.
• NSF Standard 61, IAPMO R&T, ACS, CE certifications.
• Factory preload in Nitrogen (N2) for its operation.
• 100% Factory Tested.
